COMMAND2 | PolyU2

COMMAND2 command library.

PolyU2 command catalogue with complete menu coverage, referenced submenus, icons, and GIF previews.

42 commands listed Icon source: MenuGroup.cui Display text: PopMenuRoot.cui NameRef

COMMAND2

Main Commands

Main Commands contains 2 command entries extracted from the supplied CUI definitions.

Command	Macro	Purpose

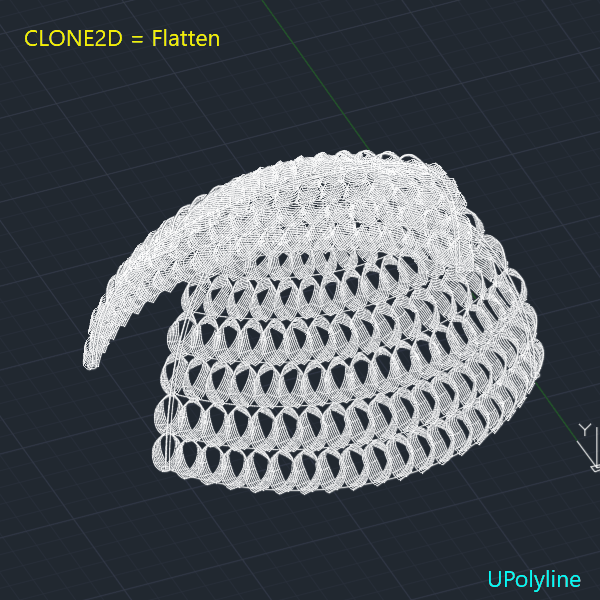

CloneScreen2Lines MMU_242_B0442	SUPL_Clone2DOnScreen	CloneScreen2Lines

superPurge MMU_242_E823D	SUPL_superPurge	superPurge

COMMAND2

CurveCoor_No. contains 10 command entries extracted from the supplied CUI definitions.

Command	Macro	Purpose

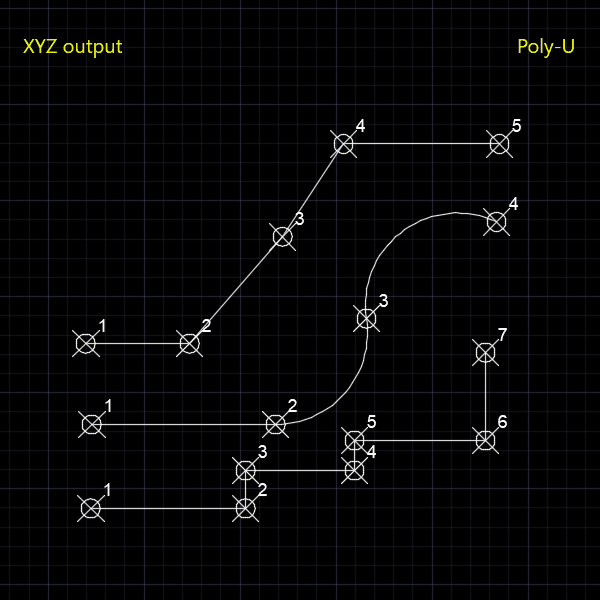

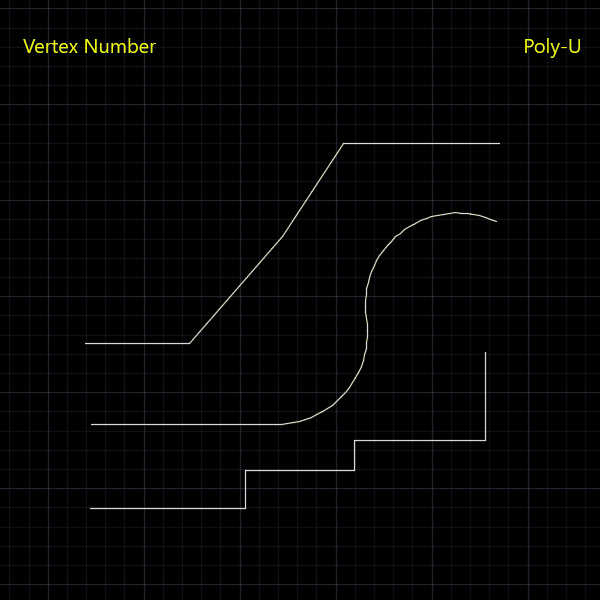

Output curve vertexes list and number MMU_220_5F8E0	SUPL_PLLIST	Output curve vertexes list and number

Number curve nodes MMU_220_EE395	SUPL_PLBH	Number curve nodes

Objects list and number MMU_242_89BBC	UMCKG	Objects list and number

Output ellipses to list and number MMU_220_B84DE	SUPL_EllipseLIST	Output ellipses to list and number

Output arcs to list and number MMU_220_D4B08	SUPL_ARCLIST	Output arcs to list and number

Output circles to list and number MMU_220_860DC	SUPL_CircleLIST	Output circles to list and number

Single curve intersection MMU_220_1C9D4	SUPL_PLINTERSECT1	Single curve intersection
Multiple curves intersection or Split MMU_220_D8952	SUPL_PLINTERSECT	Multiple curves intersection or Split

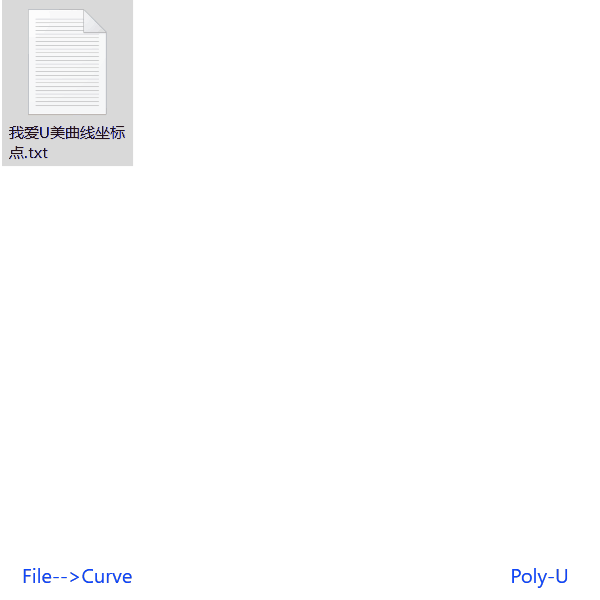

Draw curves by coordinate file MMU_220_3EC10	SUPL_TXTZB2PL	Draw curves by coordinate file

Number along curve MMU_242_E2559	SUPL_NumberPL	Number along curve

COMMAND2

Main Commands contains 24 command entries extracted from the supplied CUI definitions.

Command	Macro	Purpose
Curve2Bar MMU_242_FB8DE	SUPL_pl2circleBar	Curve2Bar
PLine2Solid MMU_242_A5281	SUPL_pl2polySolid	PLine2Solid
pl2doubleLine MMU_242_88982	SUPL_pl2doubleLine	pl2doubleLine
pl2outline MMU_242_88B44	SUPL_pl2outline	pl2outline

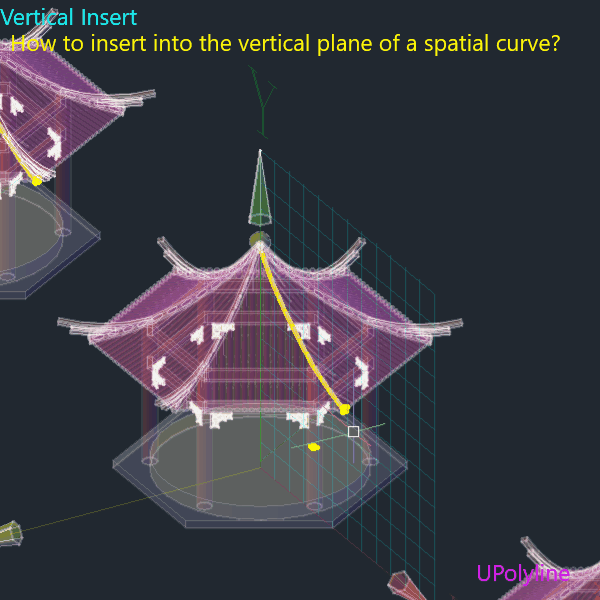

VerticalInsert MMU_242_3F869	SUPL_VerticalInsert	VerticalInsert

DrawAlignCurve MMU_242_B8BE0	SUPL_pl2circle	DrawAlignCurve

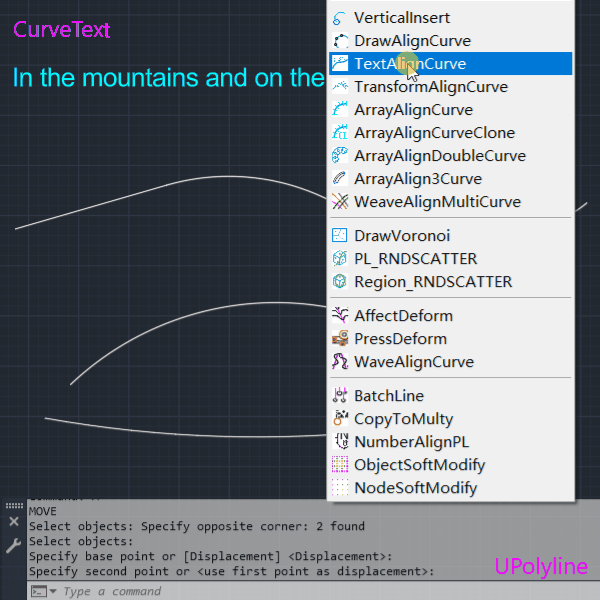

TextAlignCurve MMU_242_E7FA9	SUPL_CurveText	TextAlignCurve

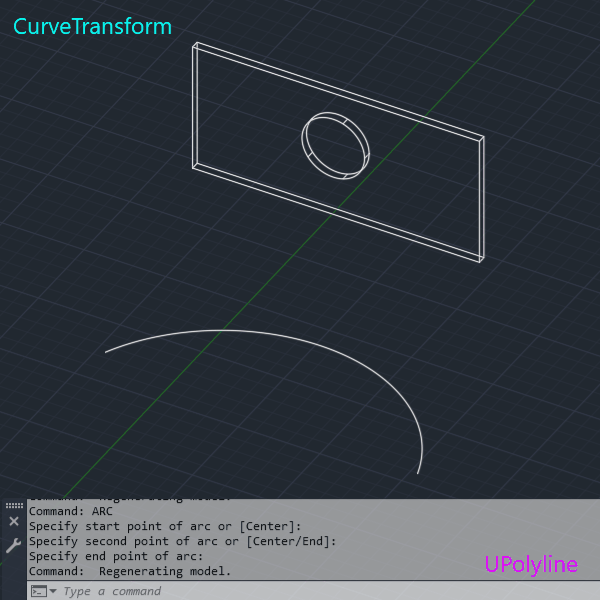

TransformAlignCurve MMU_242_E9DD8	SUPL_CurveTransform	TransformAlignCurve

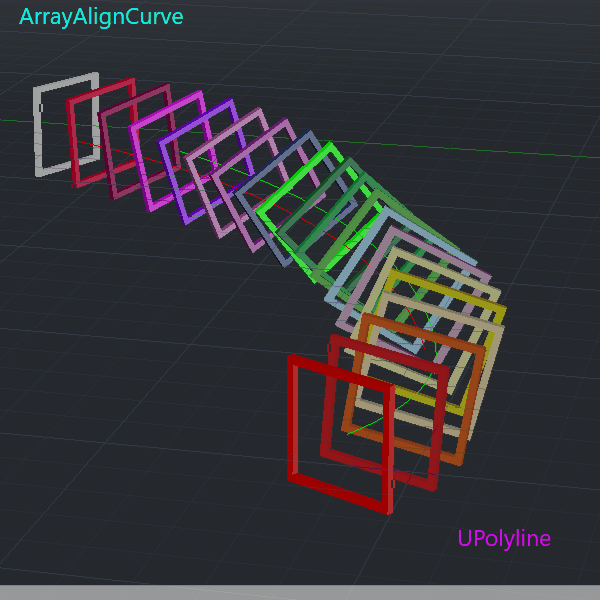

ArrayAlignCurve MMU_242_ECA04	SUPL_ArrayAlignCurve	ArrayAlignCurve

ArrayAlignCurveClone MMU_242_6F853	AAC2	ArrayAlignCurveClone

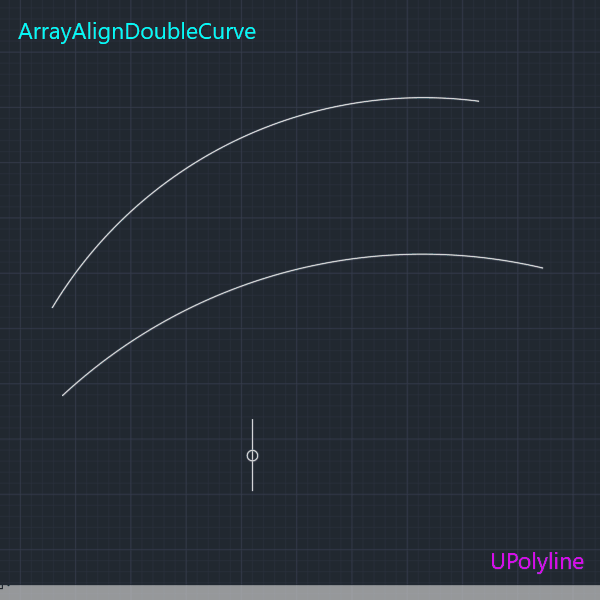

ArrayAlignDoubleCurve MMU_242_525E8	SUPL_ArrayAlignDoubleCurve	ArrayAlignDoubleCurve

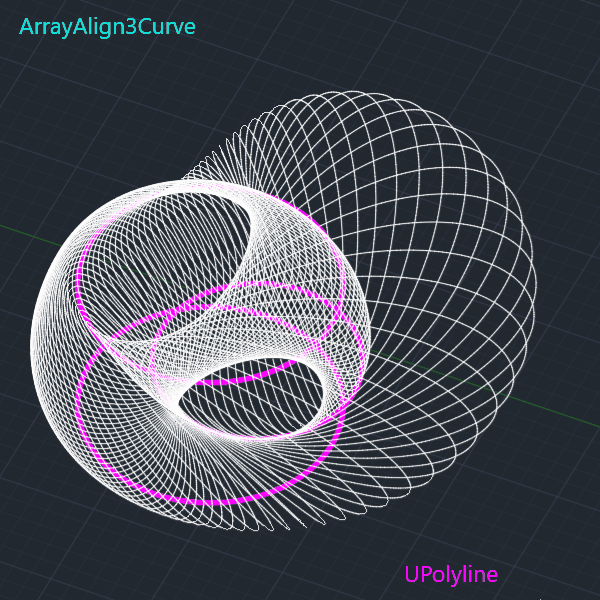

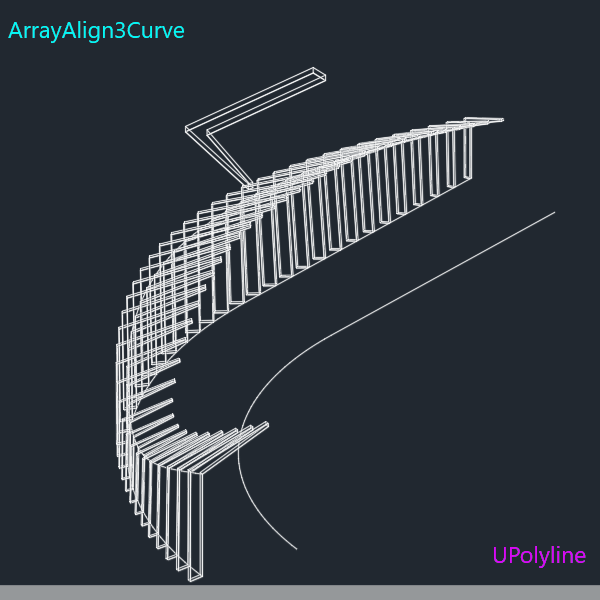

ArrayAlign3Curve MMU_242_1F4EB	SUPL_ArrayAlignThreeCurve	ArrayAlign3Curve

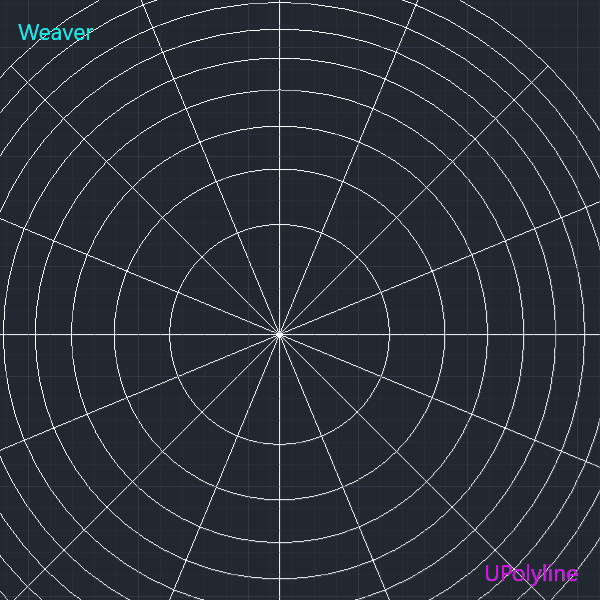

WeaveAlignMultiCurve MMU_260_CFB5D	SUPL_SplinAlignMultiCurve	WeaveSplinesAlignMultiCurve

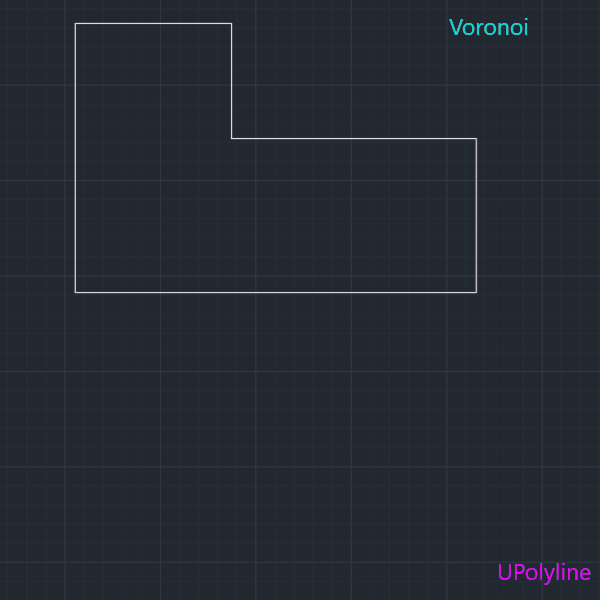

DrawVoronoi MMU_242_A98AC	SUPL_Voronoi	DrawVoronoi

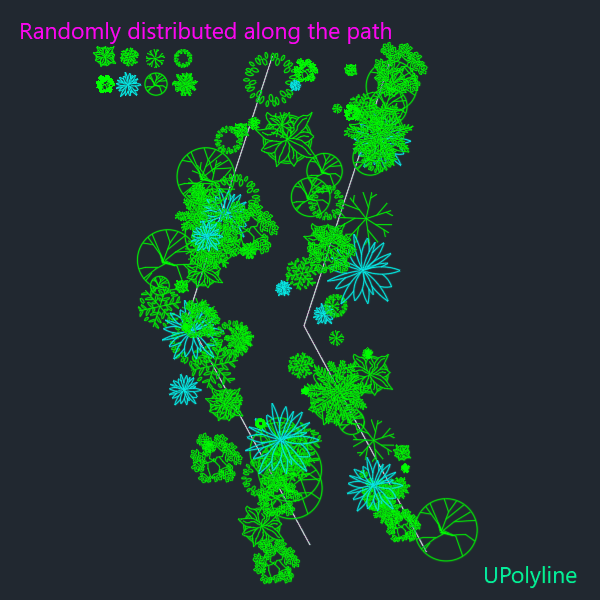

PL_RNDSCATTER MMU_242_65ECA	RNDSCATTER1	PL_RNDSCATTER

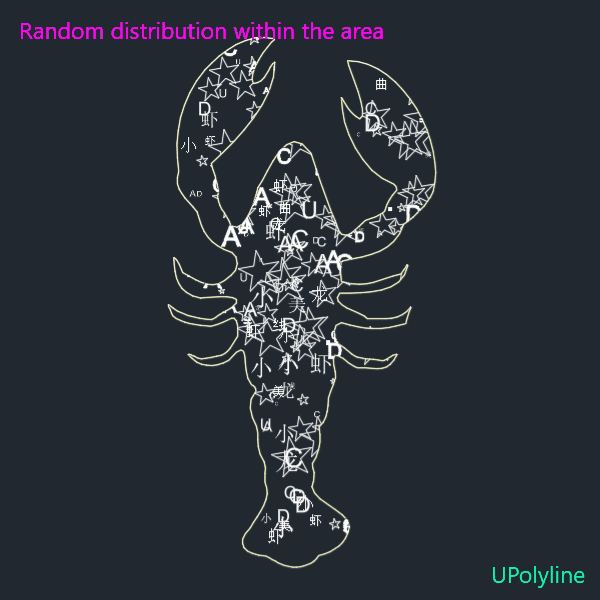

Region_RNDSCATTER MMU_242_45016	RNDSCATTER2	Region_RNDSCATTER

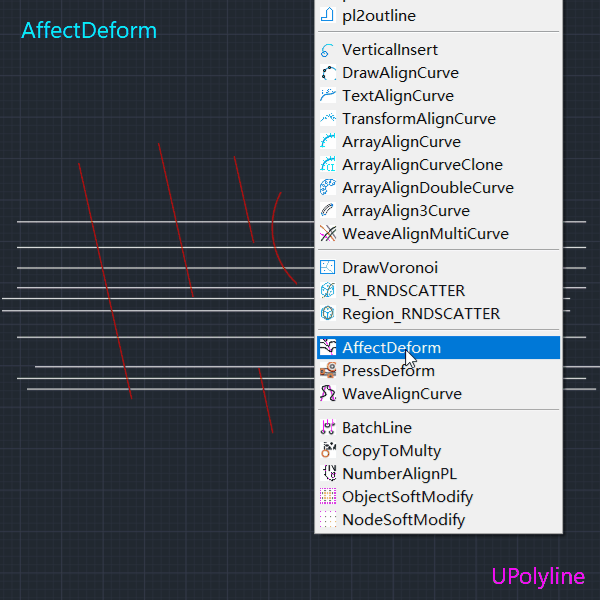

AffectDeform MMU_242_E3470	SUPL_AffectDeform	AffectDeform

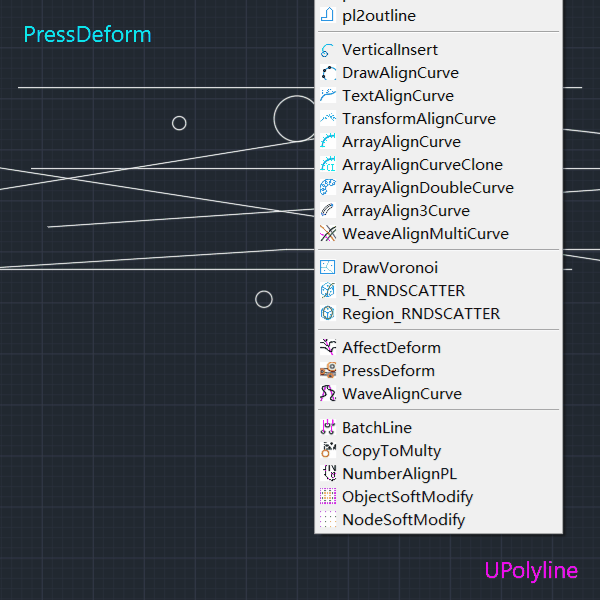

PressDeform MMU_242_F4EB8	SUPL_PressDeform	PressDeform

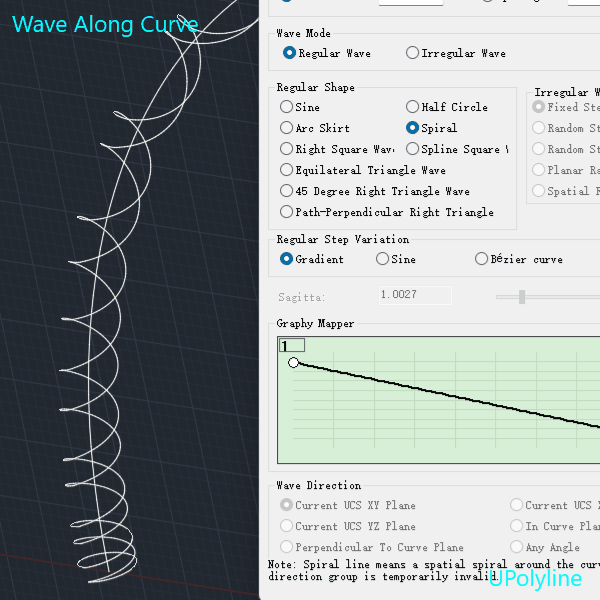

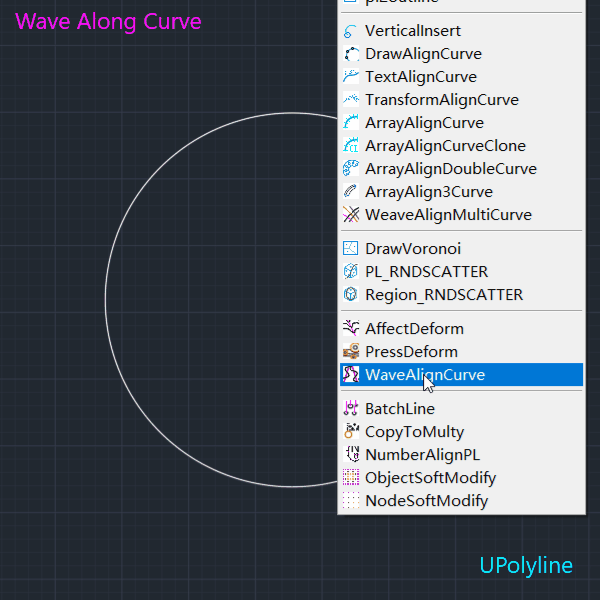

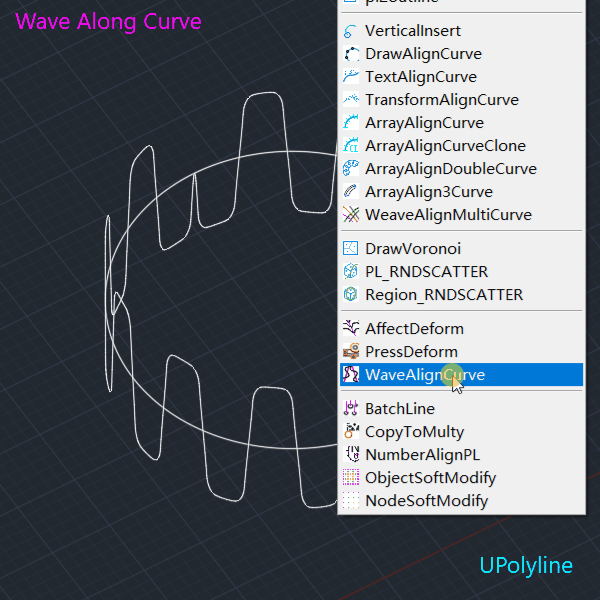

WaveAlignCurve MMU_242_FC4A3	SUPL_WaveAlignCurve	WaveAlignCurve

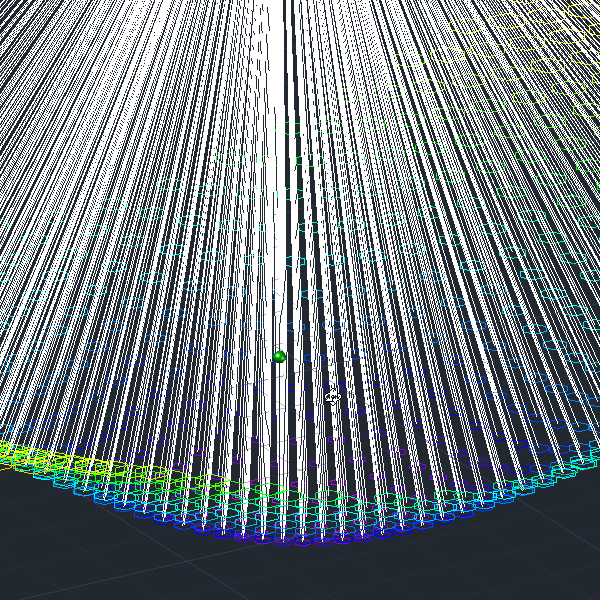

BatchLine MMU_242_72327	SUPL_BatchLine	Select objects and draw lines from the center

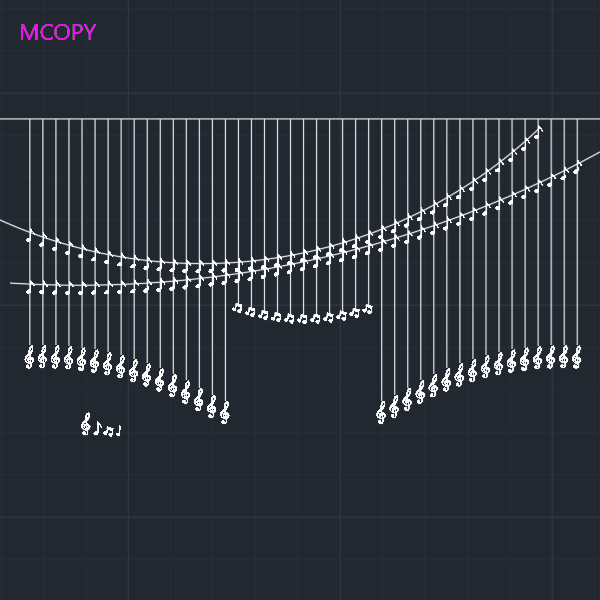

CopyToMulty MMU_242_A5E63	MCOPY	CopyToMulty

NumberAlignPL MMU_242_B9A4A	SUPL_NumberPL	NumberAlignPL

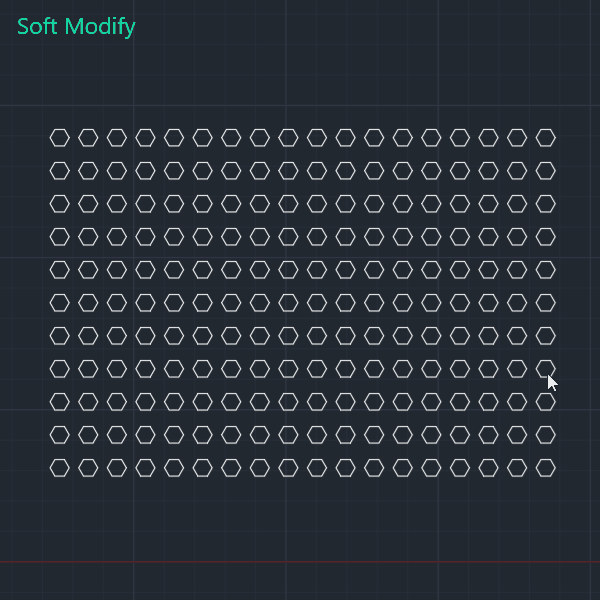

ObjectSoftModify MMU_242_D2390	SoftModify	ObjectSoftModify

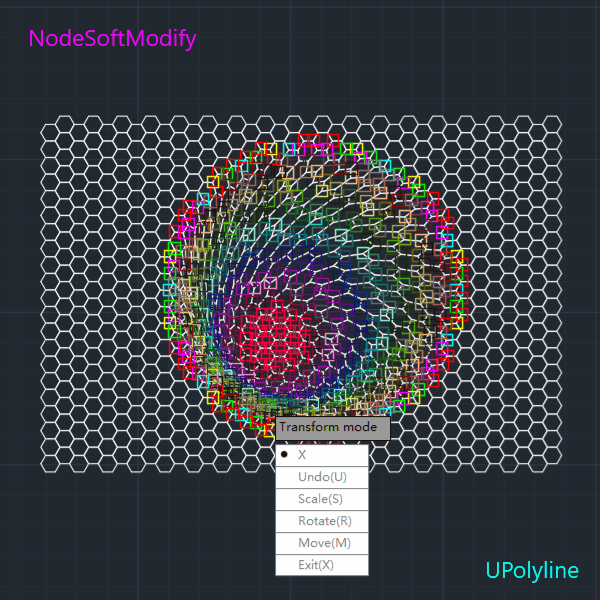

NodeSoftModify MMU_242_8A635	SoftModifyPoint	NodeSoftModify

COMMAND2

convert contains 6 command entries extracted from the supplied CUI definitions.

Command	Macro	Purpose
Old polyline to lightweight MMU_220_1F94E	SUPL_OLDPL2LW	Old polyline to lightweight
Various curves to Splines MMU_220_AB487	SUPL_pline2spline	Various curves to Splines
Spline to lightweight polyline MMU_220_6FA9E	SUPL_spline2pline	Spline to lightweight polyline
Lightweight polyline to old polyline MMU_220_08C05	SUPL_PL2OLD	Lightweight polyline to old polyline
Divide polyline by a fixed number MMU_220_E2B01	SUPL_PLDevide	Divide polyline by a fixed number
Divide polyline by equidistant distance MMU_220_518FF	SUPL_plineDevideByDist	Divide polyline by equidistant distance
