COMMAND1 | PolyU1
COMMAND1 command library.
PolyU1 command catalogue with full menu text, purpose mapping, icons, and hover GIF previews.
30 commands listed
Icon source: MenuGroup.cui
Display text: PopMenuRoot.cui NameRef
COMMAND1
Main Commands
Main Commands contains 16 command entries extracted from the supplied CUI definitions.
| Command | Macro | Purpose | Icon |
|---|---|---|---|
|

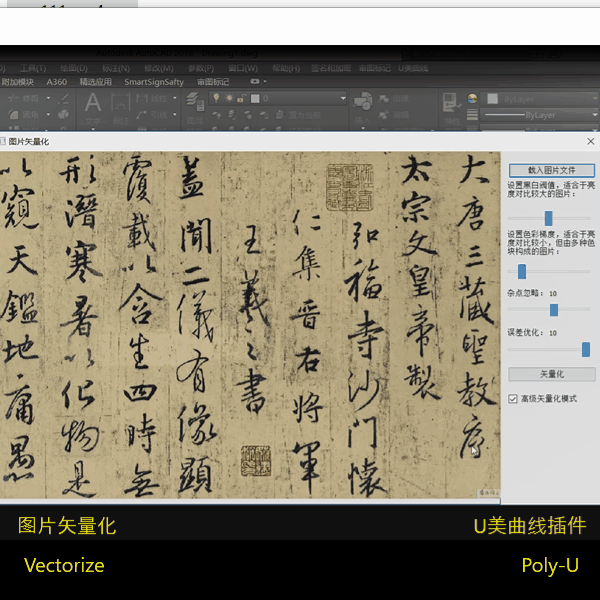

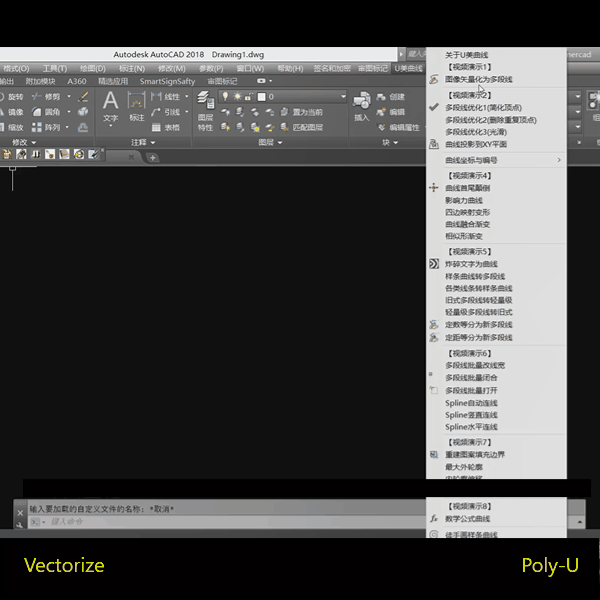

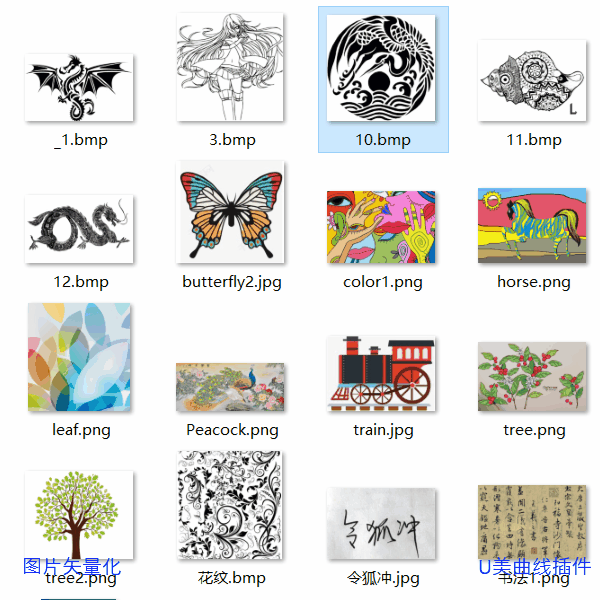

ImageVectorize
|
SUPL_VECTORIZE | ImageVectorize |
|
   |
|||
|

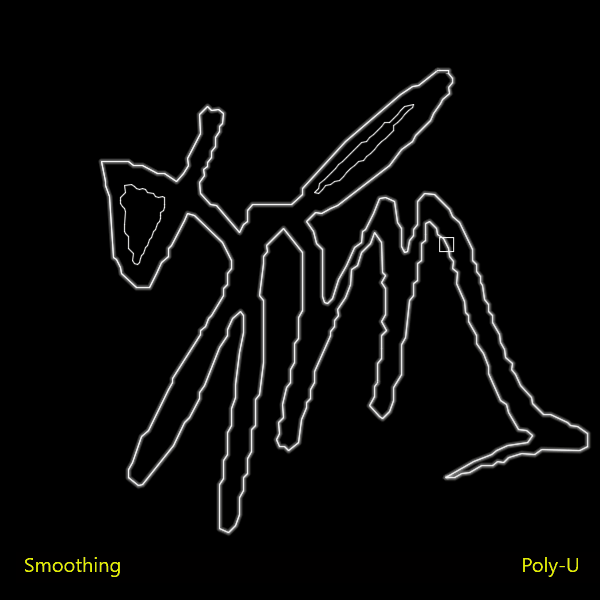

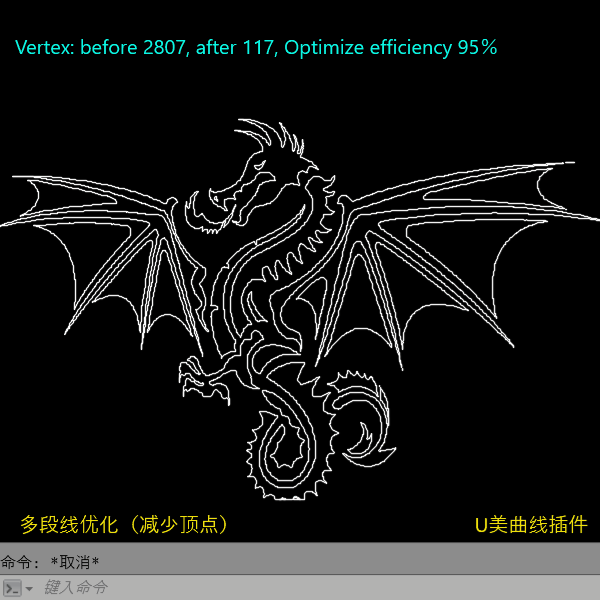

Polyline optimization 1(simplify)
|
SUPL_PLYH | Polyline optimization 1(simplify vertices) |
|
   |
|||
|

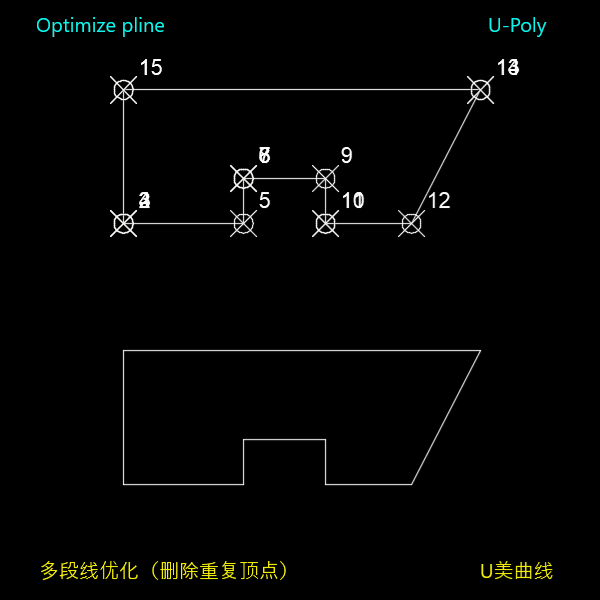

Polyline optimization 2(del dup)
|
SUPL_PLYH2 | Polyline optimization 2(delete duplicate vertices) |
|
|
|
|||
|
Polyline optimization 3 (smooth)
|
SUPL_PLYH3 | Polyline optimization 3 (smooth) |
|
|
|
|||
|
Project_to_XY
|
SUPL_QXTY | Project curves to the XY plane |
|
|
Curve reverse
|
SUPL_PLReverse | Curve reverse |
|
|

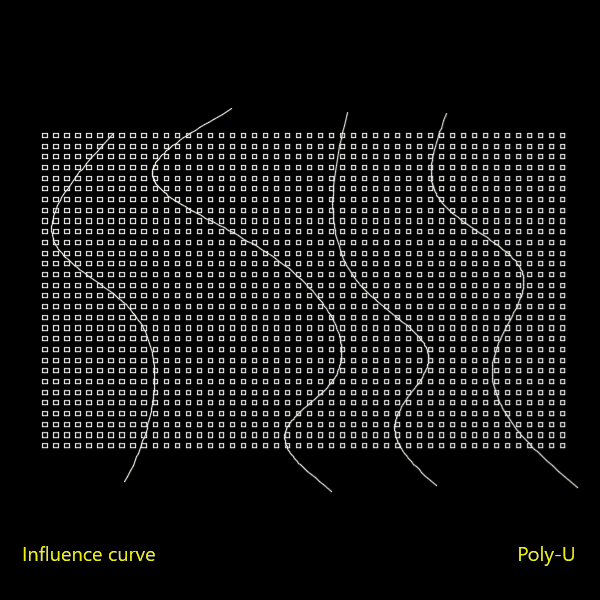

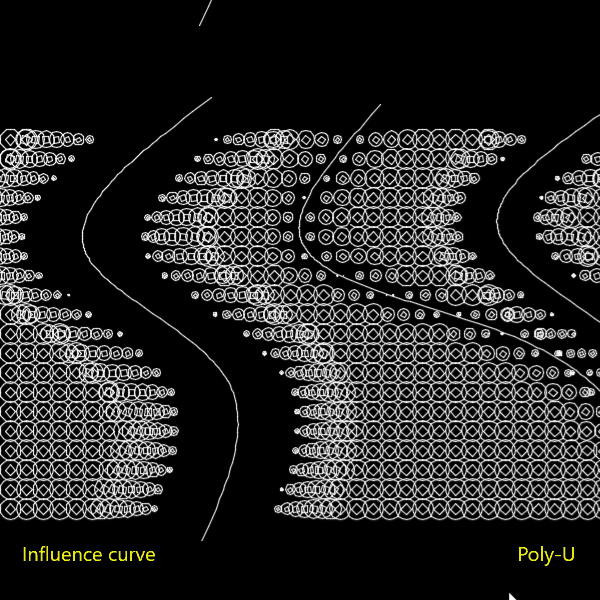

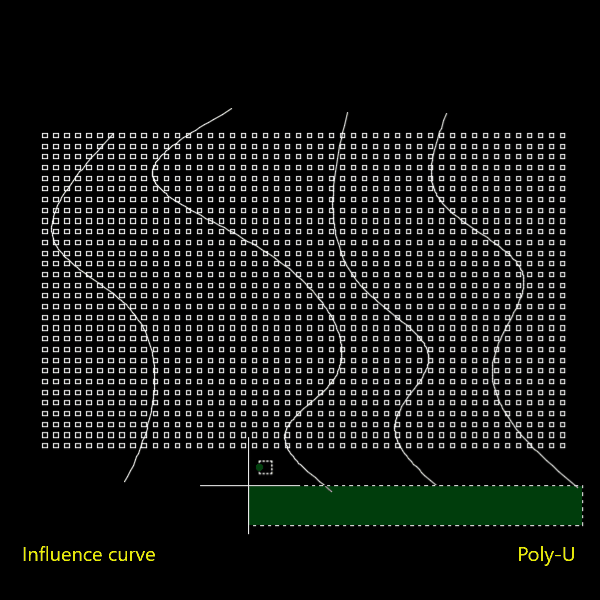

Affective curve
|
SUPL_PLAFFECT | Affective curve |
|
   |
|||
|

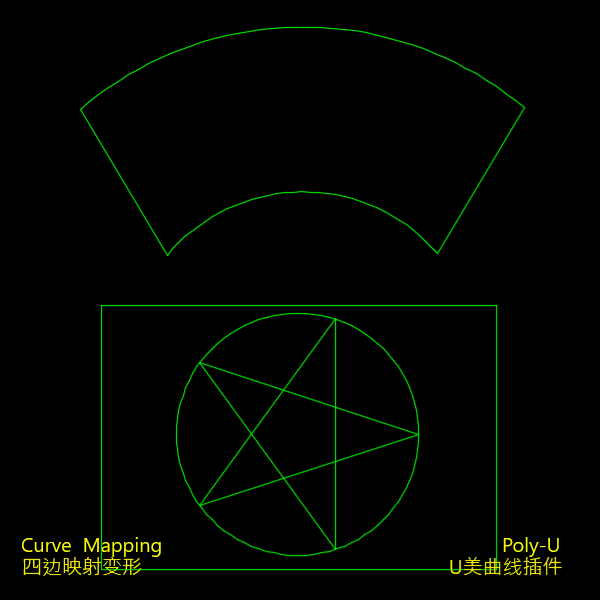

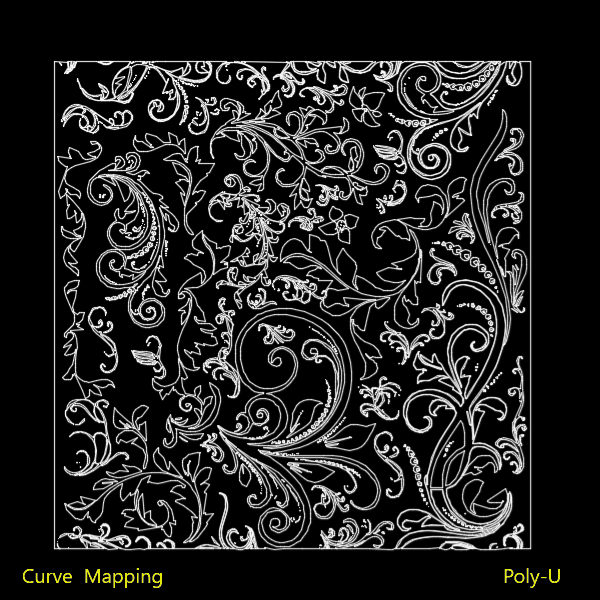

Quadrilateral mapping deformation
|
SUPL_PLMAP4 | Quadrilateral mapping deformation |
|
   |
|||
|

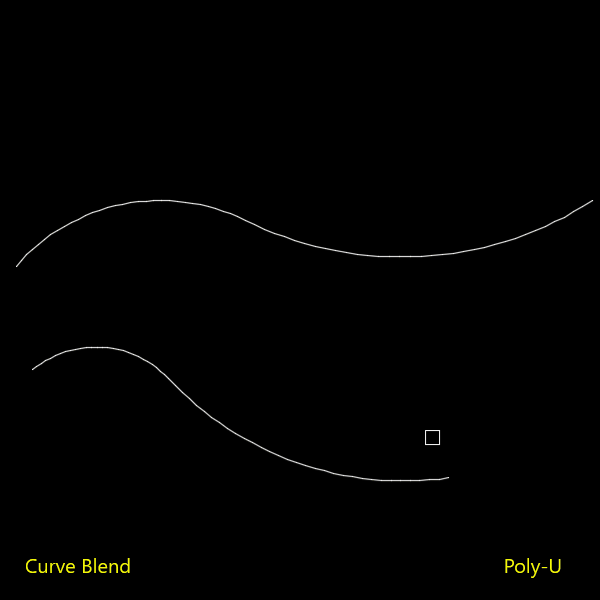

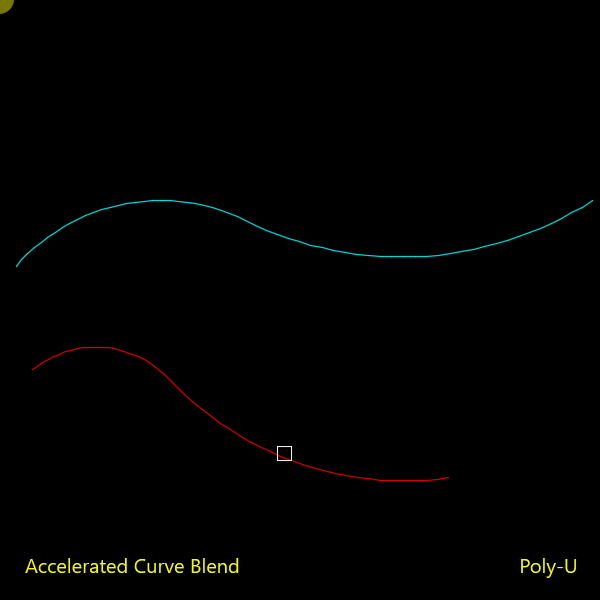

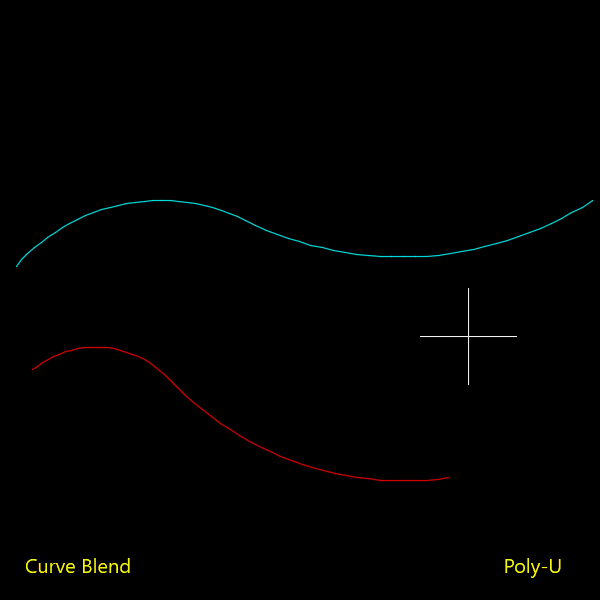

Curves blend gradient
|
SUPL_PLBLENDS | Curves blend gradient |
|
   |
|||
|

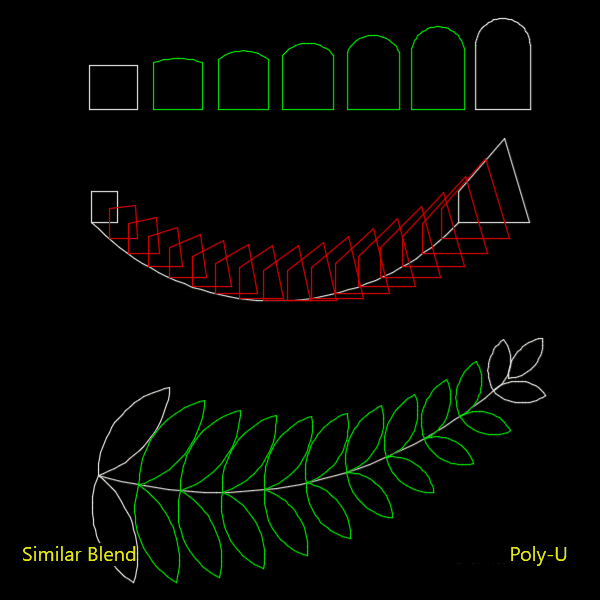

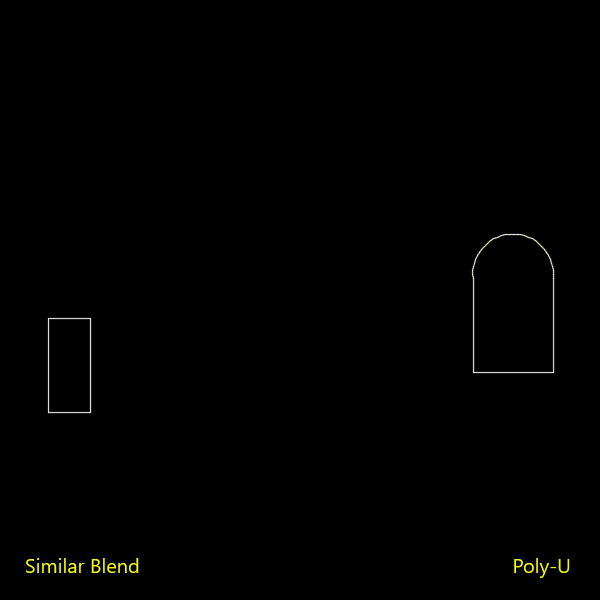

Similar shape gradient
|
SUPL_PLINT | Similar shape gradient |
|
  |
|||
|

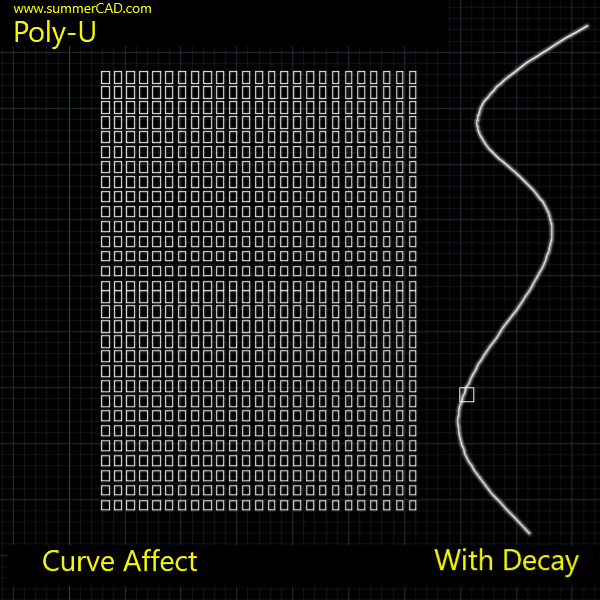

CurveAffectXmove
|
SUPL_plAffectMoveX | A curve affects a group of objects, causing horizontal displacement or compression. |
|
 |
|||
|

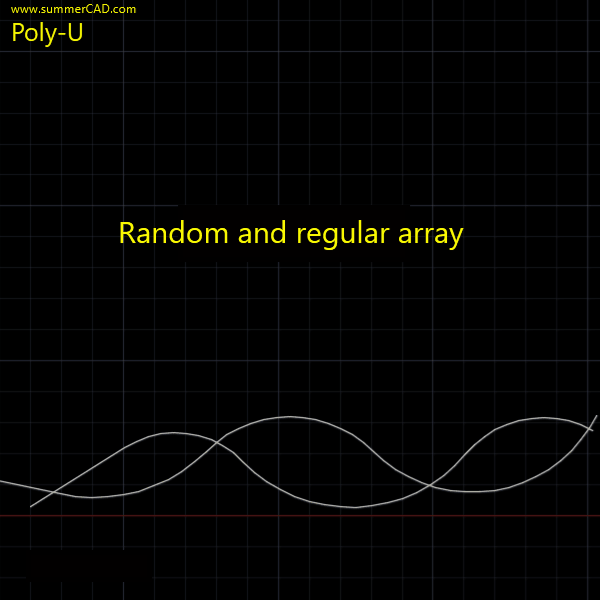

InterpolationArray
|
SUPL_PLARRAY | Create a rectangular array by interpolation |
|
 |
|||
|
RandomArray
|
SUPL_PLRNDArray | Offset replication: random array, half wave array, full wave random array, exponential array, logarithmic array |
|
|
|
|||
|

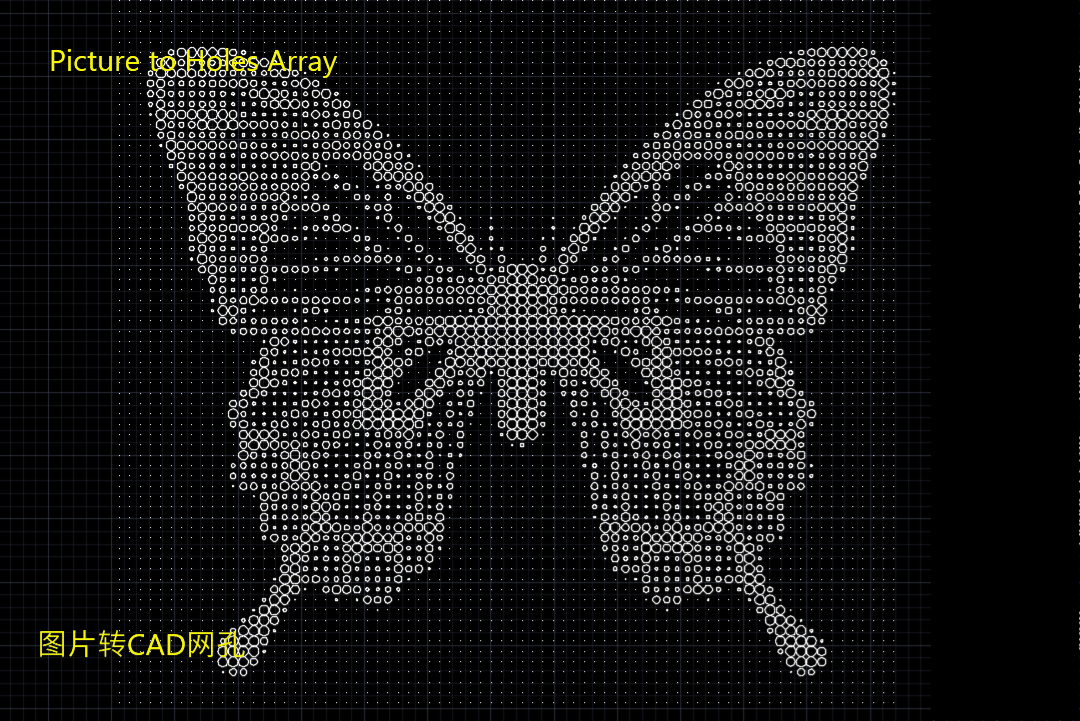

ImageHoleNet
|
SUPL_ImageHoleNet | Draw the array hoes from the image. |
|
 |
|||
|

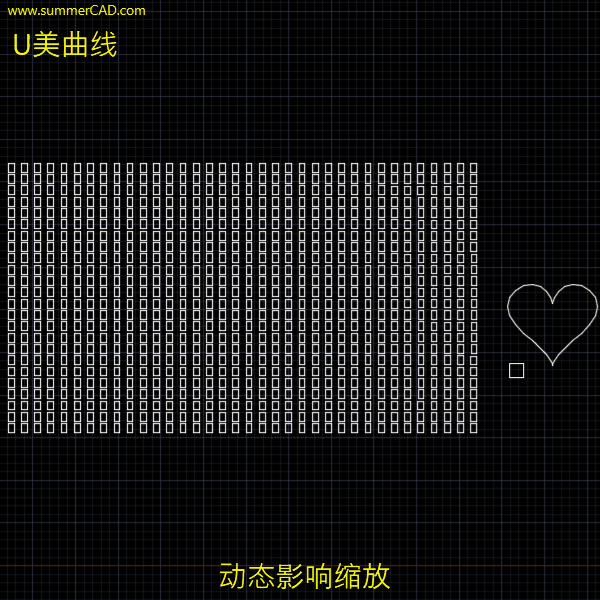

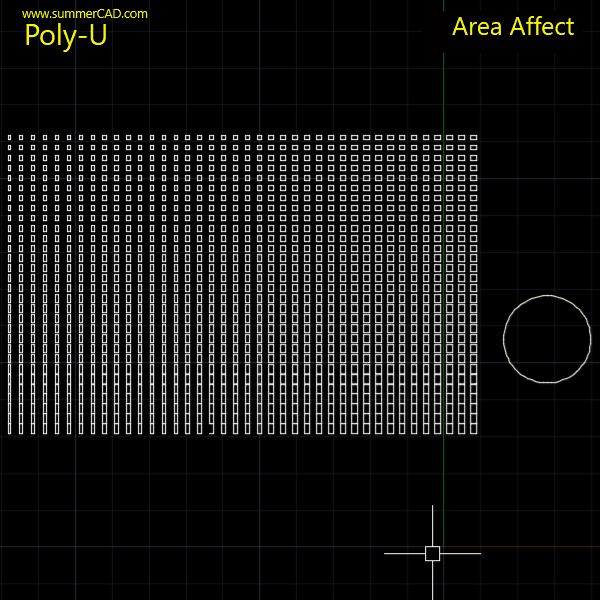

AreaAffectClick
|
SUPL_plAffClick | According to Curve area, click and influence by dynamic click |
|
  |
|||
|
Burst text into curves
|
SUPL_Text2PL | Burst text into curves |
|
COMMAND1
Batch Polyline
Batch Polyline contains 3 command entries extracted from the supplied CUI definitions.
| Command | Macro | Purpose | Icon |
|---|---|---|---|
|
Batch polylines close
|
SUPL_PLCLOSE | Batch polylines close |
|
|
Batch polylines open
|
SUPL_PLOPEN | Batch polylines open |
|
|
Batch polylines modify width
|
SUPL_PLGXK | Batch polylines modify width |
|
COMMAND1
Main Commands
Main Commands contains 11 command entries extracted from the supplied CUI definitions.
| Command | Macro | Purpose | Icon |
|---|---|---|---|
|

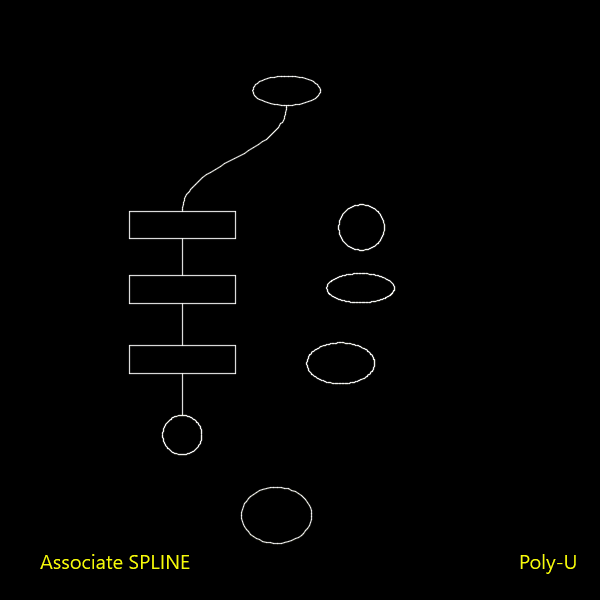

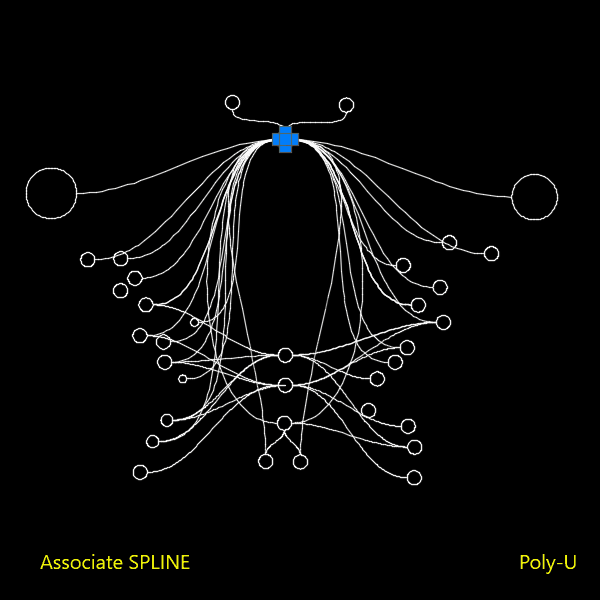

Spline auto connect
|
SUPL_linkLineAuto | Spline auto connect |
|
  |
|||
|
Spline connection vertically
|
SUPL_linkLine90 | Spline connection vertically |
|
|
|
|||
|
Spline connection horizontally
|
SUPL_linkLine00 | Spline connection horizontally |
|
|
|
|||
|

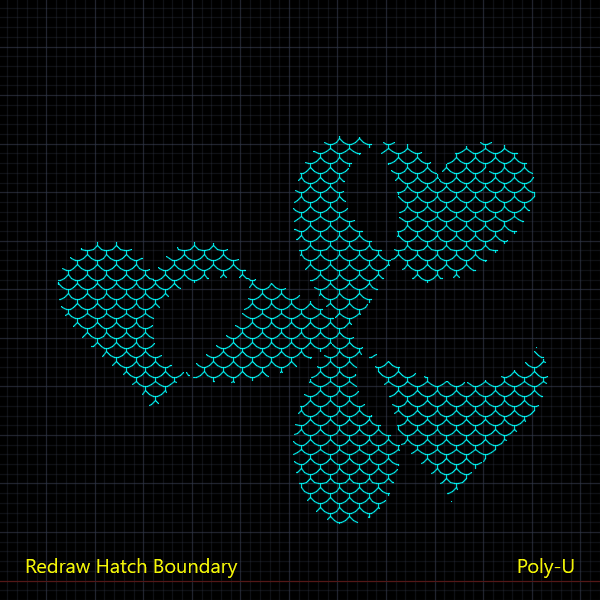

Rebuild hatch boundaries
|
SUPL_HatchBound | Rebuild hatch boundaries |
|
 |
|||
|

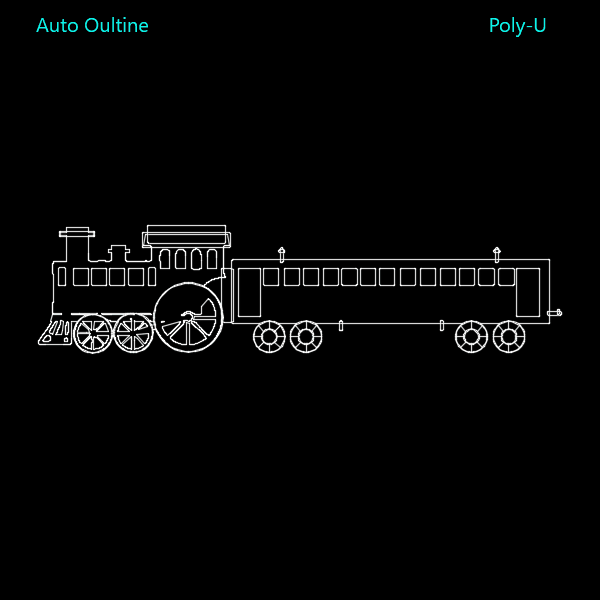

Maximum outer contour
|
SUPL_makeOutline | OutLine |
|
 |
|||
|

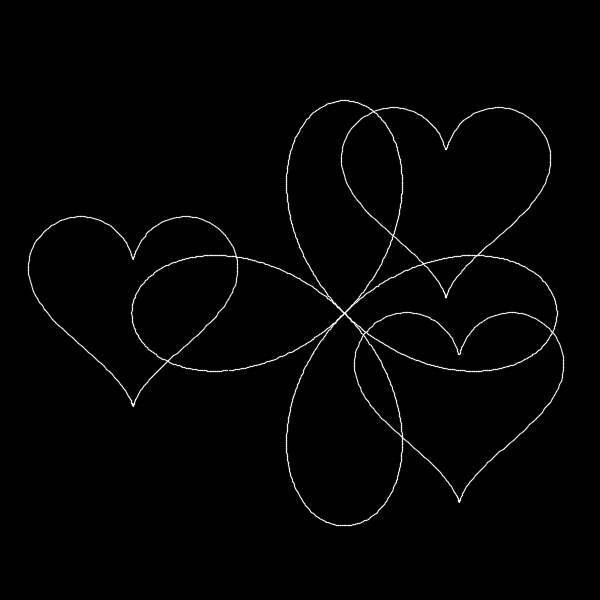

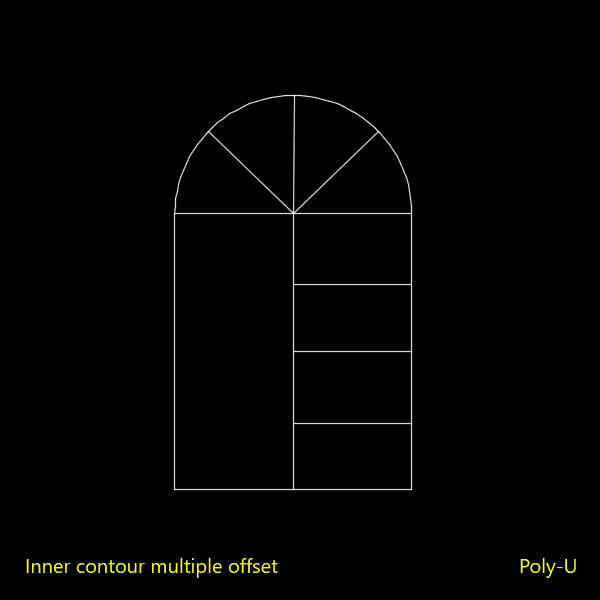

Inner contour offset
|
SUPL_INOFFSET | InnerOffset |
|
  |
|||
|

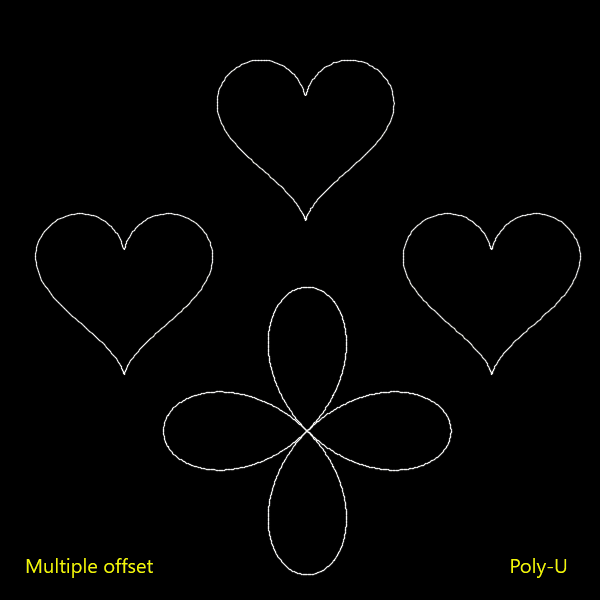

Batch offset copy
|
SUPL_PLOFFSET | Batch offset copy |
|
 |
|||
|

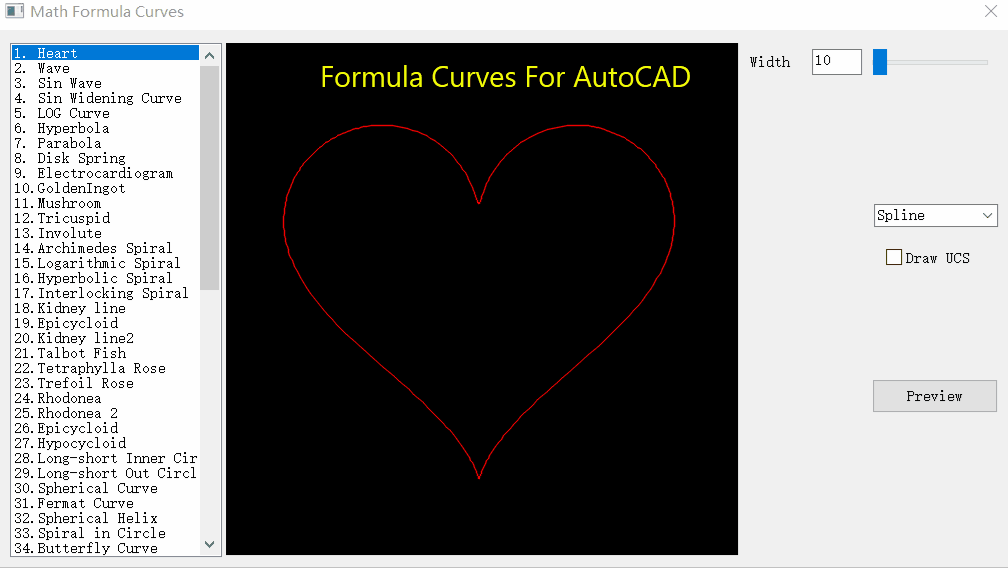

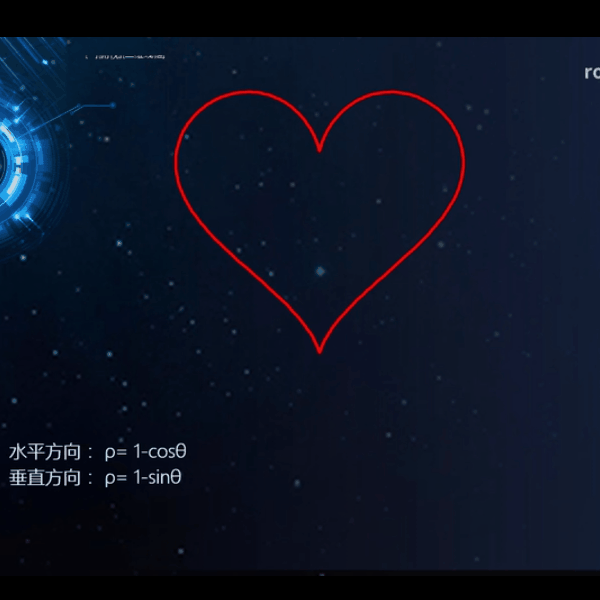

Mathematical formula curve
|
SUPL_FORMULA | Mathematical formula curve |
|
  |
|||
|
Freehand spline
|
^R_SKETCH _TYPE _SPLINE | Freehand spline |
|
|
Freehand polyline
|
^R_SKETCH _TYPE _P | Freehand polyline |
|
|
Freehand revision cloud
|
_^Rrevcloud _F | Freehand revision cloud |
|
